Joomla: Using JLayout 'Search Tools' on Joomla 3.x at admin backend for list views

Are you building admin list-view in your Joomla Extension? Do you want to include Search Tools in your Joomla 3.x extension? Here is a quick guide to doing so in easy steps.

First, we will check the folder structure needed, and then we will see sample code.

A. Folder structure and files we will see in action here-

Folder structure -

/administrator/components/com_quick2cart/models/
/administrator/components/com_quick2cart/models/fields/
/administrator/components/com_quick2cart/models/forms/
/administrator/components/com_quick2cart/views/

Files that need to be added/changed -

/administrator/components/com_quick2cart/models/forms/filter_regions.xml
/administrator/components/com_quick2cart/models/fields/countries.php
/administrator/components/com_quick2cart/models/regions.php
/administrator/components/com_quick2cart/views/regions/view.html.php
/administrator/components/com_quick2cart/views/regions/tmpl/default.php

B. Lets' code!

1. First of all, create a filter_listview.xml and add fields for all filters you want. We are considering a list view named regions in this example. So I have created an XML file for list view filters and named it as filter_regions.xml. It has an XML structure like any other module parameter options.

<?xml version="1.0" encoding="utf-8"?>fields/countries.php
<form>
	<fields name="filter">
		<field
			name="search"
			type="text"
			label="COM_QUICK2CART_FILTER_SEARCH_DESC"
			hint="JSEARCH_FILTER"
		/>

		<field
			name="country"
			type="countries"
			label="COM_QUICK2CART_FILTER_SELECT_COUNTRY"
			description="COM_QUICK2CART_FILTER_SELECT_COUNTRY_DESC"
			onchange="this.form.submit();"
			>
				<option value="">COM_QUICK2CART_FILTER_SELECT_COUNTRY</option>
		</field>

		<field
			name="state"
			type="list"
			label="COM_CONTENT_FILTER_PUBLISHED"
			description="COM_CONTENT_FILTER_PUBLISHED_DESC"
			onchange="this.form.submit();"
			>
			<option value="">JOPTION_SELECT_PUBLISHED</option>
			<option value="1">COM_QUICK2CART_PUBLISH</option>
			<option value="0">COM_QUICK2CART_UNPUBLISH</option>
		</field>
	</fields>

	<fields name="list">
		<field
			name="limit"
			type="limitbox"
			class="input-mini"
			default="25"
			label="COM_CONTENT_LIST_LIMIT"
			description="COM_CONTENT_LIST_LIMIT_DESC"
			onchange="this.form.submit();"
		/>
	</fields>
</form>

 The above filter XML has four fields -

• search      - Search text field
• countries - Custom list field (that I have created and put in /administrator/components/com_quick2cart/models/fields/  )
• state         - List field
• limit          - Limit box field for pagination Limit Box

2. Second, we create a custom field named country and put it at location - /administrator/components/com_quick2cart/models/fields/countries.php

<?php
/**
 * @version    SVN: <svn_id>
 * @package    Tjfields
 * @copyright  Copyright (c) 2009-2015 TechJoomla. All rights reserved.
 * @license    GNU General Public License version 2 or later.
 */

// No direct access.
defined('_JEXEC') or die();

JFormHelper::loadFieldClass('list');

/**
 * Supports an HTML select list of categories
 */
class JFormFieldCountries extends JFormFieldList
{
	/**
	 * The form field type.
	 *
	 * @var		string
	 * @since	1.6
	 */
	protected $type = 'countries';

	/**
	 * Fiedd to decide if options are being loaded externally and from xml
	 *
	 * @var		integer
	 * @since	2.2
	 */
	protected $loadExternally = 0;

	/**
	 * Method to get a list of options for a list input.
	 *
	 * @return	array		An array of JHtml options.
	 *
	 * @since   11.4
	 */
	protected function getOptions()
	{
		$db = JFactory::getDbo();
		$query = $db->getQuery(true);
		$client = JFactory::getApplication()->input->get('client', '', 'STRING');

		// Select the required fields from the table.
		$query->select('c.id, c.country, c.country_jtext');
		$query->from('`#__tj_country` AS c');

		if ($client)
		{
			$query->where('c.' . $client .' = 1');
		}

		$query->order($db->escape('c.ordering ASC'));

		$db->setQuery($query);

		// Get all countries.
		$countries = $db->loadObjectList();

		$options = array();

		// Load lang file for countries
		$lang = JFactory::getLanguage();
		$lang->load('tjgeo.countries', JPATH_SITE, null, false, true);

		foreach ($countries as $c)
		{
			if ($lang->hasKey(strtoupper($c->country_jtext)))
			{
				$c->country = JText::_($c->country_jtext);
			}

			$options[] = JHtml::_('select.option', $c->id, $c->country);
		}

		if (!$this->loadExternally)
		{
			// Merge any additional options in the XML definition.
			$options = array_merge(parent::getOptions(), $options);
		}

		return $options;
	}

	/**
	 * Method to get a list of options for a list input externally and not from xml.
	 *
	 * @return	array		An array of JHtml options.
	 *
	 * @since   2.2
	 */
	public function getOptionsExternally()
	{
		$this->loadExternally = 1;

		return $this->getOptions();
	}
}

Note that step 2. code is optional if you are not using any custom form elements.

3. Then, we need to edit - /administrator/components/com_quick2cart/views/regions/view.html.php

We need to add following code to the view.html.php file

$this->filterForm = $this->get('FilterForm');
$this->activeFilters = $this->get('ActiveFilters');

So it will look like -

class Quick2cartViewRegions extends JViewLegacy
{
	// Some code here

	public function display ($tpl = null)
	{
		$this->state = $this->get('State');
		$this->items = $this->get('Items');
		$this->pagination = $this->get('Pagination');

		// Get filter form.
		$this->filterForm = $this->get('FilterForm');

		// Get active filters.
		$this->activeFilters = $this->get('ActiveFilters');

		// Some code here

		parent::display($tpl);
	}
}

4.  Then, we need to edit - /administrator/components/com_quick2cart/views/regions/tmpl/default.php

We need to add following code to display the search filters on the form on the list view - default.php

<?php
	// Search tools bar
	echo JLayoutHelper::render('joomla.searchtools.default', array('view' => $this));
?>

 So it will look like -

<form
	action="<?php echo JRoute::_('index.php?option=com_quick2cart&view=regions'); ?>"
	method="post" name="adminForm" id="adminForm">

	<?php if (!empty( $this->sidebar)) : ?>
		<div id="j-sidebar-container" class="span2">
			<?php echo $this->sidebar; ?>
		</div>
		<div id="j-main-container" class="span10">
	<?php else : ?>
		<div id="j-main-container">
	<?php endif;?>
			<?php
			// Search tools bar
			echo JLayoutHelper::render('joomla.searchtools.default', array('view' => $this));
			?>

			<!-- Other code goes here -->

		</div>
</form>

5.  Finally, we need to edit - /administrator/components/com_quick2cart/models/regions.php

Your module must extend module class JModelList to use search filters.

We need to modify 3 functions in regions.php

public function __construct($config = array())
// Set filter fields in this function

protected function populateState($ordering = null, $direction = null)
// Get and set current values of filters

protected function getListQuery()
// Use current filter values to modify the the query and hence the output

 So it will look like -

class Quick2cartModelRegions extends JModelList
{
	public function __construct($config = array())
	{
		if (empty($config['filter_fields']))
		{
			$config['filter_fields'] = array(
				'id', 'a.id',
				'state', 'state',
				'region', 'a.region',
				'region_3_code', 'a.region_3_code',
				'region_code', 'a.region_code',
				'region_jtext', 'a.region_jtext',
				'country', 'c.country',
				'state', 'a.state'
			);
		}

		parent::__construct($config);
	}

	protected function populateState($ordering = null, $direction = null)
	{
		// Initialise variables.
		$app = JFactory::getApplication('administrator');

		// Other code goes here

		$country = $app->getUserStateFromRequest($this->context . 'filter.country', 'filter_country', '', 'string');
		$this->setState('filter.country', $country);

		// Other code goes here

		// List state information.
		parent::populateState('a.id', 'asc');
	}


	protected function getListQuery()
	{
		// Create a new query object.
		$db = $this->getDbo();
		$query = $db->getQuery(true);

		// Other code goes here

		// Filter by country
		$country = $this->getState('filter.country');

		if (is_numeric($country))
		{
			$query->where('a.country_id = '.(int) $country);
		}

		// Other code goes here

		return $query;
	}
}

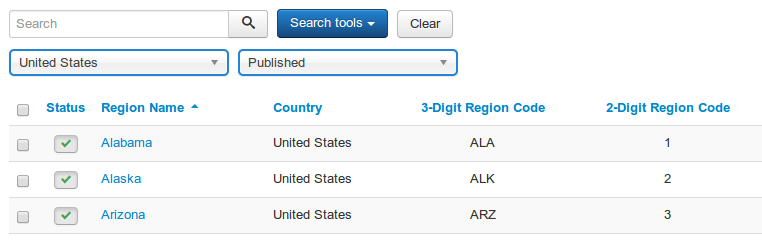

6. All done! Let's see the output -

I hope this turns out helpful for you all.
